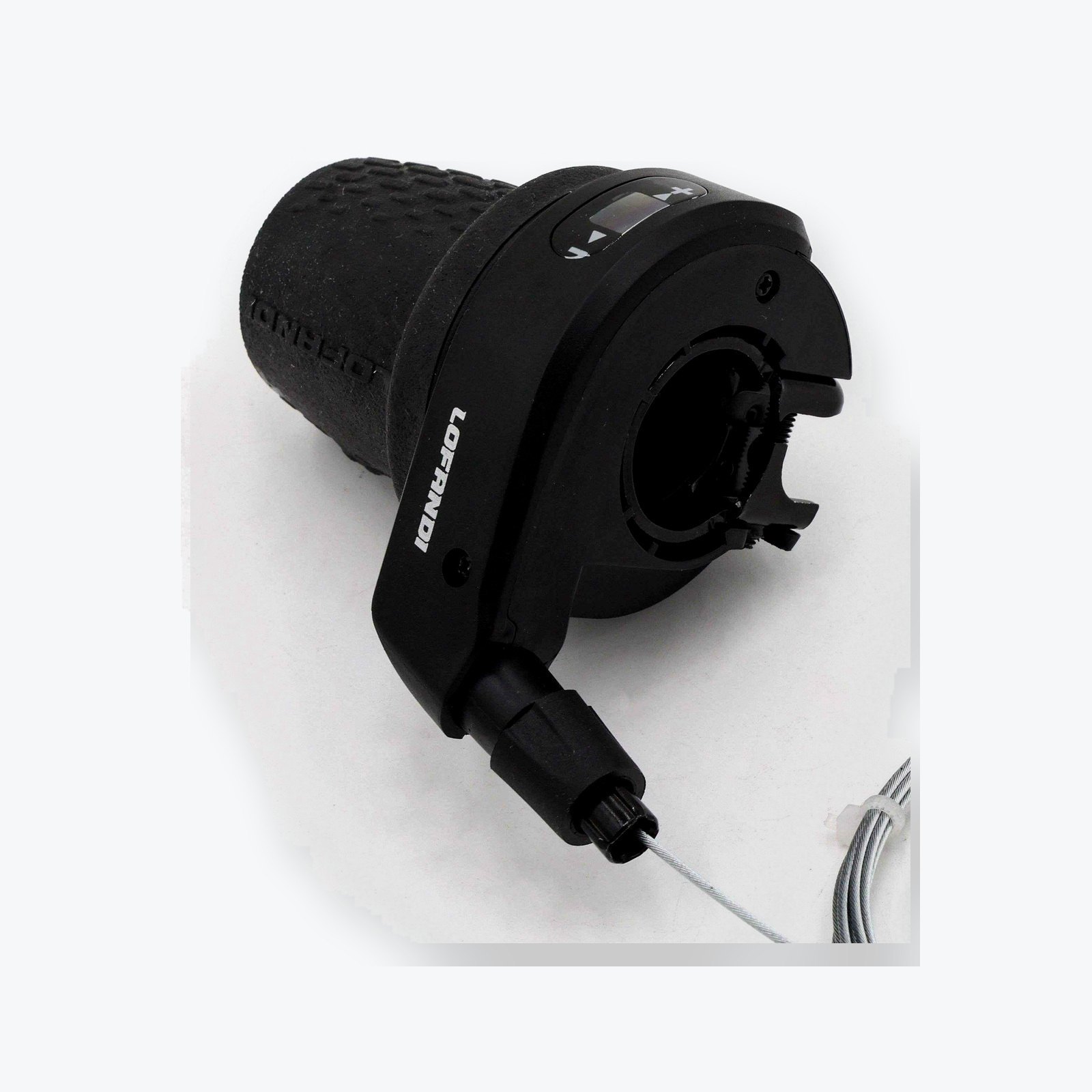

Extended Body 3 Speed Twist Shifter For Shared And Utility Bikes

The LL-3S02E Extended-Body 3-Speed Twist Shifter is a right-hand mechanical control matched with the LG-N3000-3R internal gear hub. Its 80 x 55 x 98 mm black body creates a distinct selection direction for shared bicycles, utility bikes, city mobility products and OEM projects evaluating a longer twist-control layout.

Three indexed positions organize the available gears, with click feedback and a transparent window providing tactile and visual references during operation. A maximum gear jump of two allows one twist action to move across two gear positions, supporting direct selection across the three-speed range.

LL-3S02E should be selected as a defined shifter-and-hub combination rather than as a generic long-body control. Its LG-N3000-3R matching, right-hand installation, 22.2 mm handlebar interface and 2100 mm stainless steel cable form the main engineering basis for sample and complete-bicycle evaluation.

• Extended 80 x 55 x 98 mm Body: Provides an alternative twist-control layout for project selection.
• LG-N3000-3R Matching: Keeps the indexed shifter and internal gear hub relationship explicit.
• Right-Hand Three-Speed Control: Supports direct manual gear selection within the grip area.
• Maximum Two-Gear Jump: Allows one twist action to cross two gear positions.
• Transparent Gear Window: Gives riders a visual reference for the selected position.
• Indexed Click Feedback: Adds tactile confirmation to the three gear selections.
• 22.2 mm Handlebar Interface: Provides a defined mounting basis for cockpit evaluation.
• 2100 mm Stainless Steel Cable: Supports mechanical control and frame-routing assessment.
• Shared And Utility Application Direction: Fits projects seeking simple manual internal-hub control without implying confirmed fleet life.
• Reliability Documentation: Lifecycle and environmental test directions support engineering review without publishing values.

LL-3S02E converts right-hand grip rotation into calibrated cable movement for LG-N3000-3R. The three indexed positions help make gear selection recognizable and repeatable within the matched internal gear hub system.

Maximum Gear Jump 2 allows the rider to cross two positions in one twist action. In repeated urban riding, this supports direct movement between different parts of the three-speed range without requiring an additional lever or electrical control interface.

For smooth internal-hub engagement, the rider should briefly reduce pedal pressure during the gear change. This is especially relevant in stop-and-go, utility and shared-use environments where clear operating guidance can reduce misuse without claiming that the shifter is designed to change gear under full load.

LL-3S02E is suitable for city bikes / commuter e-bikes / utility bikes using compatible manual 3-speed internal gear hubs. It should be selected according to the matched hub model, control style, handlebar space, cable length and rider operation preference.

The shifter program is supported by lifecycle documentation for repeated shifter and shift-lever operation. Salt-spray, corrosion, temperature-humidity, drop and vibration-related documentation is also available for environmental, transport and handling review.

The transparent gear window has undergone scratch-resistance, aging or visibility evaluation. These validation directions add useful engineering context for shared and utility projects, but the page must not state a specific cycle life, durability grade, waterproof level or confirmed fleet service interval without the applicable report.

Before sampling, confirm LG-N3000-3R, 22.2 mm handlebar diameter, right-hand cockpit layout, 98 mm body clearance, brake-lever and display position, cable path, hub-side connection and target operating environment.

For shared or utility projects, also confirm the planned operation instructions, inspection process, spare-part requirements and order configuration. These items belong to project communication rather than fixed public specifications.

Project support can begin with model, hub and cockpit matching, followed by cable-routing and sample-bicycle validation. Sample quantity, delivery, packaging, replacement components, warranty and OEM requests should be confirmed in the commercial and technical project documents.
